Eleenova Fusion Infrared Cooktop 2000W | Superior Crystal Glass Top | Touch Controls | Durable Heating Element | Compatible with Flat-Bottom Cookware | Stainless Steel Rack | Grill, Barbecue, Roast & Tandoor | 1 Year Warranty

Key Features

• 2000W Powerful Heating: Delivers fast and efficient heating for quick cooking and daily meal preparation.

• Infrared Cooking Technology: Provides even heat output and works with a wide range of flat-bottom cookware.

• Compatible with Flat-Bottom Cookware: Works with steel, aluminium, cast iron, copper, bronze, clay, and other flat-bottom vessels.

• Superior Crystal Glass Top: Premium glass surface adds elegance and makes cleaning quick and easy.

• User-Friendly Touch Controls: Smooth touch panel allows effortless operation and easy temperature control.

• Durable Heating Element: Built with a high-quality heating element for quick and even heating performance.

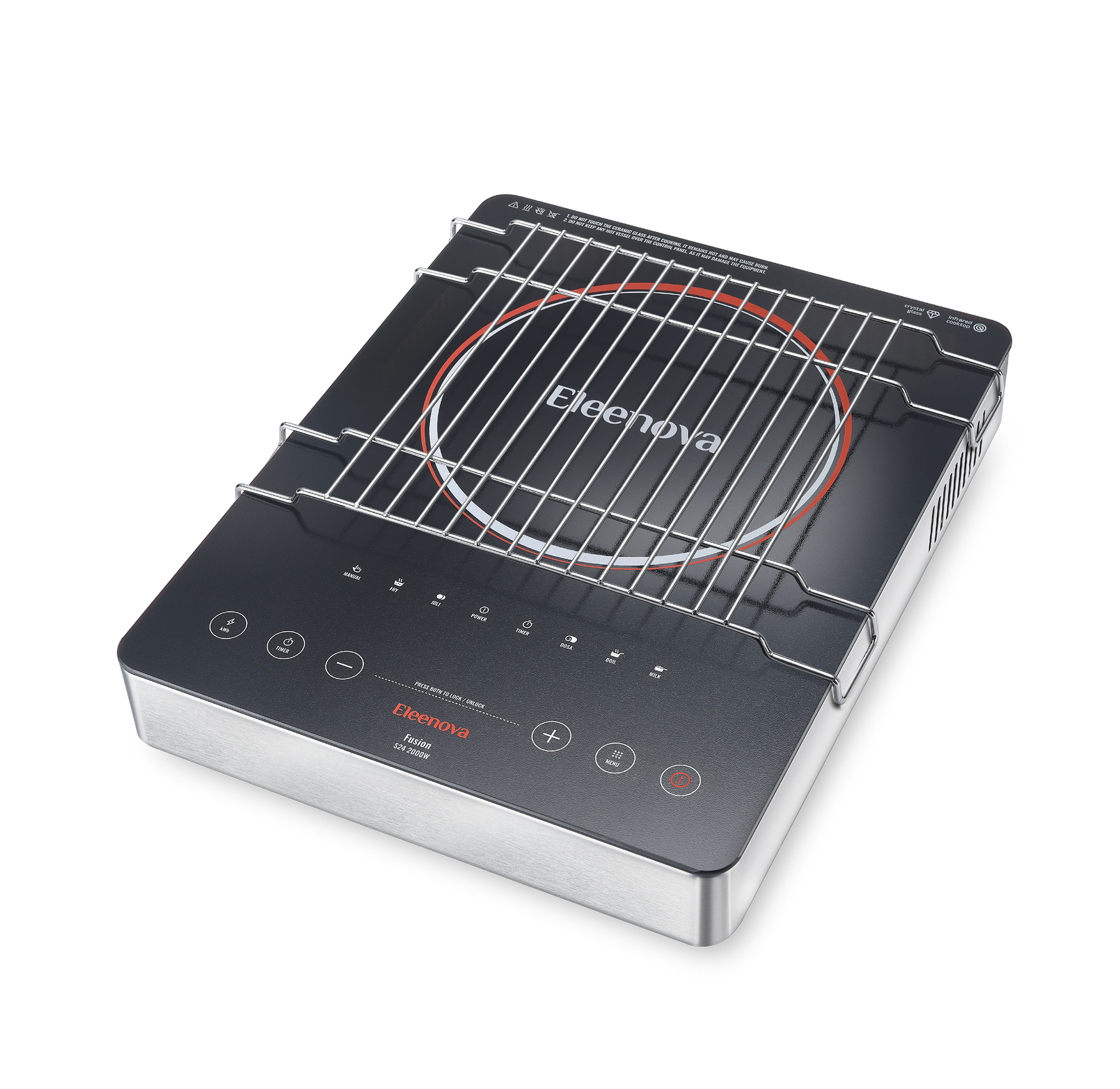

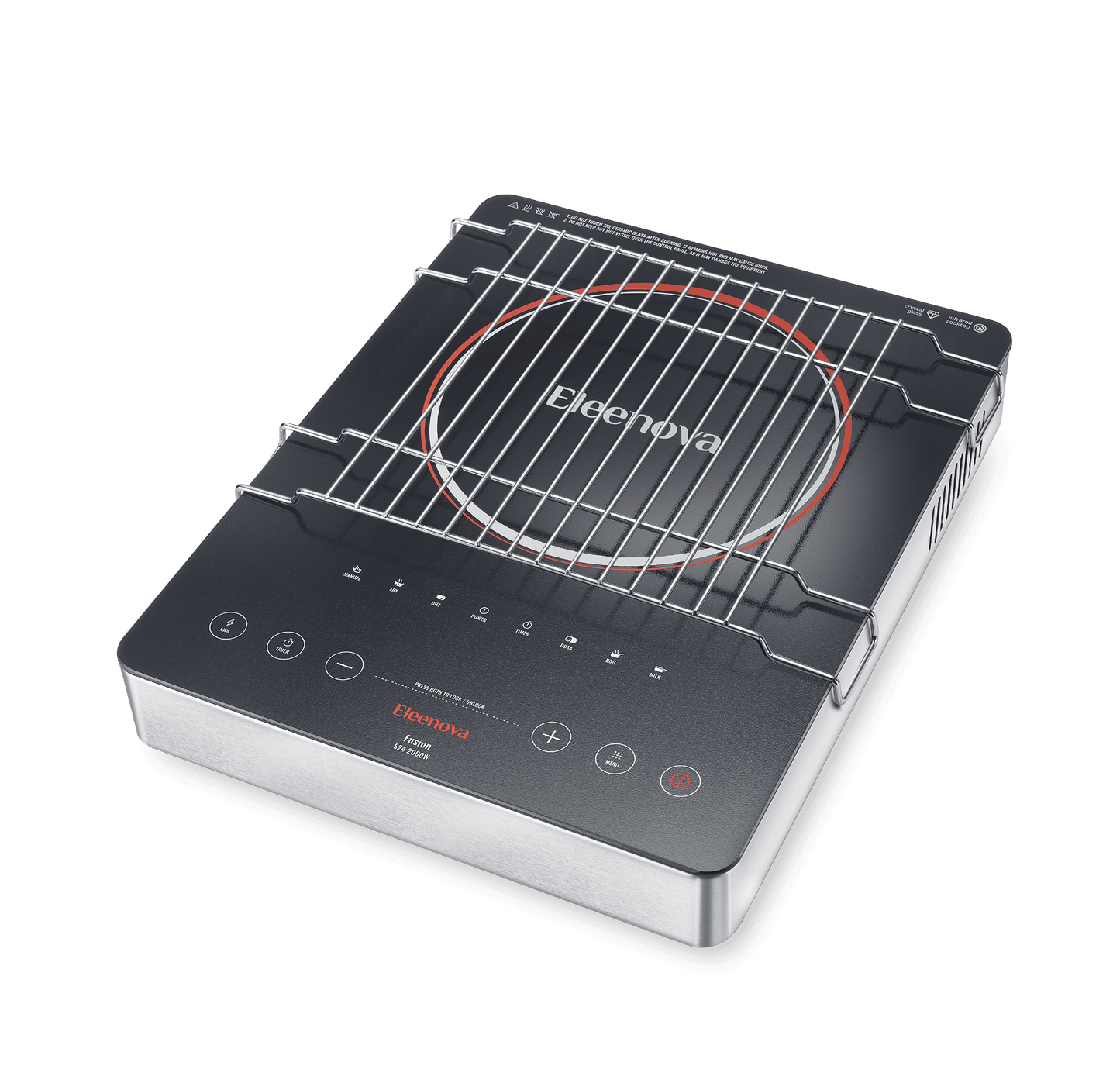

• Stainless Steel Rack Included: Useful for grill, barbecue, roast, and tandoor-style cooking.

• Versatile Cooking Options: Ideal for paneer tikka, baingan bharta, seekh kebab, tandoori roti, bhutta, soya chaap, and more.

• High-Efficiency Heating: Helps cook faster while delivering consistent heat performance.

• Quiet Functioning: Designed for smooth and silent cooking operation.

• Elegant Appearance: Sleek design adds a modern touch to your kitchen space.

• Easy to Clean & Maintain: Smooth surface can be wiped clean after cooling.

• 1 Year Warranty: Comes with warranty support for reliable use.


Note

Use only flat-bottom cookware for best heating performance. The cooktop surface and stainless steel rack become hot during use, so allow them to cool before cleaning or touching. Do not place plastic items on the hot surface. Keep the cooktop on a flat, dry surface and clean only after cooling.

Sku Code-82403
M.R.P:₹ 6295.00(inclusive of taxes)
Contents-Eleenova FUSION 2000 W infrared Cooktop
Net Quantity -1 unit
Manufactured for & Marketed by -TEKNOEDGE HOME APPLIANCES,REGISTERED OFFICE:1st floor, AJ Tower, 1174, 24th Main Rd, near Marammadevi Temple, 2nd Sector, Garden Layout, Sector 2, HSR Layout, Bengaluru, Karnataka 560102 INDIA. PH: 895 164 9000
Customer Care -CUSTOMER CARE CELL: NATIONAL SERVICE MANAGER, TEKNOEDGE HOME APPLIANCES,1st floor, AJ Tower, 1174, 24th Main Rd, near Marammadevi Temple, 2nd Sector, Garden Layout, Sector 2, HSR Layout, Bengaluru, Karnataka 560102 INDIA. PH: 895 164 8999, EMAIL: customercare@eleenova.com
Country Of Origin-INDIA
Packaging Dimensions [ L X B X H ]-39 X 32 X 41.5 CM
Product Dimensions [ L X B X H ]-37.6 x 30 x 38 cm
Model Name -Fusion
Pack Size -1
Power -2000 W
Wattage -2000 W
Voltage- 230 V
Material -Glass
Control -Touch Button
Category-Infrared Cooktop
Warranty -1 Year Warranty
Ignition Type-Manual
HSN Code-85166000
EAN Code-8906184824031
Net Weight-2259 g
Gross Weight-2389g
Colour -Black

Eleenova (hereinafter referred to as “the Company”) warrants to the purchaser of the “Eleenova Fusion Infrared
Cooktop” (hereinafter referred to as Infrared Cook-top that the product is free from defects in material and
workmanship. This warranty is valid for a period of one (1) year from the date of original purchase, covering any
manufacturing defects, subject to the following terms and conditions:
1. The warranty is valid only if the warranty card is duly completed and signed by the dealer at the time of
purchase.
2. This warranty applies strictly to domestic use of the Infrared Cook-top in accordance with the guidelines
provided in the user manual.
3. All servicing and repairs must be carried out exclusively by the Company’s Authorized Service Centre
(addresses listed in this manual).
4. The customer is responsible for transporting the Infrared Cook-top to the nearest Authorized Service Centre
at their own cost and risk.
5. Repairs or replacements carried out under this warranty do not extend the original warranty period.
6. The warranty excludes coverage for damages resulting from mishandling, negligence, breakage of the glass
panel, or any cracks in the body.
7. Electrical parts, such as coils or motors, are susceptible to damage due to voltage fluctuations. The Company
shall not be held responsible for such damages.
8. The Company reserves the right to retain any replaced part or component and may repair or replace them
at its discretion.
9. Repairs under this warranty are free of charge for components and labour associated with manufacturing
defects within the warranty period
10. The Company is not liable for any special or consequential damages, losses, or delays in warranty service.
11. Complaints or disputes related to this warranty shall be subject to the jurisdiction of the Courts of Bengaluru.
12. Regular inspection of electrical appliances and wiring points by an authorized service technician is
recommended for safe operation.
13. The Company will not be held liable for accidents, damages, or losses caused by:
a) Unauthorized repairs or services performed by unlicensed personnel.
b) Improper or reckless use of the product.
c) Use of counterfeit or non-genuine spare parts.
d) Alteration, tampering, or defacement of the original serial number or tamperproof seal.
14. The warranty does not cover any damages caused by overloading, misuse, or failure to adhere to safety
precautions outlined by the Company.
15. If the appliance malfunctions due to defects outside the scope of this warranty, the Company’s decision on
service or replacement shall be final.
16. The Company strives to resolve warranty-related issues promptly but cannot guarantee a specific timeframe
for repairs or replacements.
17. This warranty is limited strictly to product repair or replacement and does not include any form of monetary
compensation.
18. Precautions must be taken against voltage fluctuations to prevent damage to the Infrared Cook-top

Care Instructions

When using the Eleenova Infrared Cook-top, always follow these basic safety precautions. Carefully read all
instructions before use:
1.
2.
3.
Check Voltage Compatibility
Ensure that the mains voltage matches the voltage specified on the appliance’s label before using the Infrared
cook-top.
Avoid Overloading Power Source
Avoid using the Infrared cook-top simultaneously with other high-power electrical appliances from the same
power source.
Prevent Immersion in Liquids
To prevent fire, electric shock, and injury, do not immerse the cook-top, cord, or plug in water or any other
liquid.
4. Supervise Around Children
Keep the Infrared cook-top out of reach of children. Close supervision is essential when
the appliance is used around children.
5. Do Not Leave Unattended
Do not leave the cook-top unattended while it is in operation.
6. Avoid High Temperature Environments
Avoid using the cook-top in environments with high temperatures.
7. Remove Water from Vessel
Remove any water from the bottom of the vessel before use to prevent splashes and
scalding when heated.
8. Ensure Proper Ventilation
Ensure proper ventilation while the appliance is in use.
9. Prevent Fire Hazards
Do not place paper, cloth, or similar materials between the cook-top and the vessel to prevent fire hazards.
10. Avoid Overheating and Malfunction
Avoid placing paper, cloth, or similar materials underneath the cook-top to prevent overheating and
malfunction.
11.
Unplug Before Cleaning
Unplug the appliance from the mains before cleaning and when not in use. Allow the cook-top to cool
completely before moving or cleaning it after cooking.
12. Inspect for Damage
Do not operate the appliance with a damaged cord or plug, or if it malfunctions, is dropped, or damaged in any
way. Return it to the nearest Authorised Service Centre for examination, repair, or adjustment.
13. Place on a Flat Surface
Ensure the appliance is placed on a flat surface. Do not let the power cord hang over the edge of the table or
counter or touch any hot surface.
14. Avoid Hot Surfaces and Flames
Do not place the appliance on any hot surface, near fire, or near another electrical
appliance or hot gas stove.
15. Proper Disconnection
To disconnect, remove the plug from the wall outlet. Always hold the plug; never pull the
cord.
16. Avoid Heating Empty Vessels
Do not heat an empty vessel. If food is burnt, switch off the power, allow the vessel to cool,
and then remove it.
17. Do Not Move with Vessel on Top
Do not move the Infrared cook-top with a vessel on it.
18. Broken Glass Panel
If the black glass panel is broken, do not use the appliance. Take it to your nearest
Authorised Service Centre immediately.
19. Do Not Self-Repair
Do not attempt to open or repair the Infrared cook-top yourself. Contact our Authorised
Service Centre for any issues.
20. Immediate Service for Malfunctions
If the appliance malfunctions, do not operate it. Contact our Authorised Service Centre immediately.
21. Allow to Cool Before Cleaning
Do not clean the appliance with water immediately after cooking, as the cook-top will be hot and the glass panel
may break.
22. For Domestic Use Only
This Infrared cook-top is intended for domestic use only.
23. Cracked Surface Precautions
If the surface is cracked, switch off the appliance to avoid the risk of electric shock.
24. Avoid Metallic Objects on Glass Surface
Do not place metallic objects such as knives, spoons, and lids on the glass surface as they can become hot.
SAVE THESE INSTRUCTIONS

1. POWERING ON :
When the main power is switched on, all LEDs will illuminate with a beep sound, and the ON/OFF LED
will blink, display will show ” ----”.
2. TURNING ON THE COOK-TOP :
Press the ON/OFF button. The display will show “ON”.
3. SELECTING A FUNCTION :
Press the MENU key and select the desired function. The cook-top will start operating in the selected
function with default power or temperature settings. The LED corresponding to the selected function
will light up.
4. ADJUSTING POWER/TEMPERATURE :
Adjust the power or temperature by pressing the “+” or “-” buttons.
COOKING MODES :
1. Manual Cook Mode ( ):
This function is ideal for all your regular cooking needs. It starts at a default of 1300 W. The heating
power is adjustable in this mode, even while the appliance is in operation. You can increase or decrease
the power using the “+” or “-” buttons according to your requirement.
2. Fry Mode ( ):
Use this function for deep frying your favourite foods. It begins with a default temperature of 650°C.
The temperature can be adjusted while the cook-top is operating, making it perfect for maintaining the
right frying conditions. Adjust the temperature using the “+” or “-” buttons as needed.
3. Milk Mode ( ): Use this mode for heating milk. It starts with a default setting of 0:20 minutes at a
fixed power. The appliance operates in power mode, providing gentle and consistent heat to prevent
scorching. The timer can be adjusted from 0:01 to 3:00 hours using the “+” or “-” keys, giving you control
over the heating duration
4. Idli Mode ( ): This mode is perfect for making idlis, with a default setting of 0:20 minutes at a fixed power.
The appliance operates in auto-power mode, ensuring consistent cooking without the need for manual
adjustments. The timer can be set between 0:01 and 3:00 hours using the “+” or “-” keys, providing flexibility
for various recipes.
5. Dosa Mode ( ): This function is ideal for cooking dosas. It works at constant 1100W Power and maintains
constant temperature required for making Dosa.
6. Boil Mode ( ) : Use this mode for boiling liquids. It starts with a default setting of 0:25 minutes at a fixed
power. The appliance operates in power mode, providing gentle and consistent heat to prevent scorching. The
timer can be adjusted from 0:01 to 3:00 hours using the “+” or “-” keys, giving you control over the boiling
duration

TIMER FUNCTION

Timer Function: This feature is available for the Pressure cook, Deep Fry, Stir fry, Curry & Dosa / Chapati modes.
Setting the Timer
SETTING THE TIMER & CHILD LOCK
1. After selecting a function, press the Timer button. The display will show “0:10”.
2. Increase the timer by pressing the “+” button or decrease it by pressing the “-” button.
3. Each press of the button will increase or decrease the time by 1 minute.
4. The maximum timer duration is 3:00 hours, and the minimum is 0:01 hours.
5. The display will alternate between showing the set power/temperature and the remaining time.
6. Press Timer button again to cancel the set time.
ACTIVATING CHILD LOCK
Press and hold the UP and DOWN buttons together for 3 seconds.
The display will show “CH LC” (Child Lock)

MAINTENANCE & CLEANING

Turn Off and Unplug:
Ensure the power is turned off and
unplug the cook-top from the wall
outlet.

Cool Before Cleaning:
Allow the appliance to cool completely
before cleaning. Never clean the appliance
while it is still hot. Use a damp cloth to
wipe down the cook-top and control panel.

Avoid Water Immersion:
Do not clean the Infrared Cook-top
under running water or immerse it in
water

Clean the Glass Panel:
For cleaning the black glass panel, start by
wiping it with a wet cloth. Follow this by
using a sponge with mild detergent, then
dry it thoroughly with a soft cloth.
